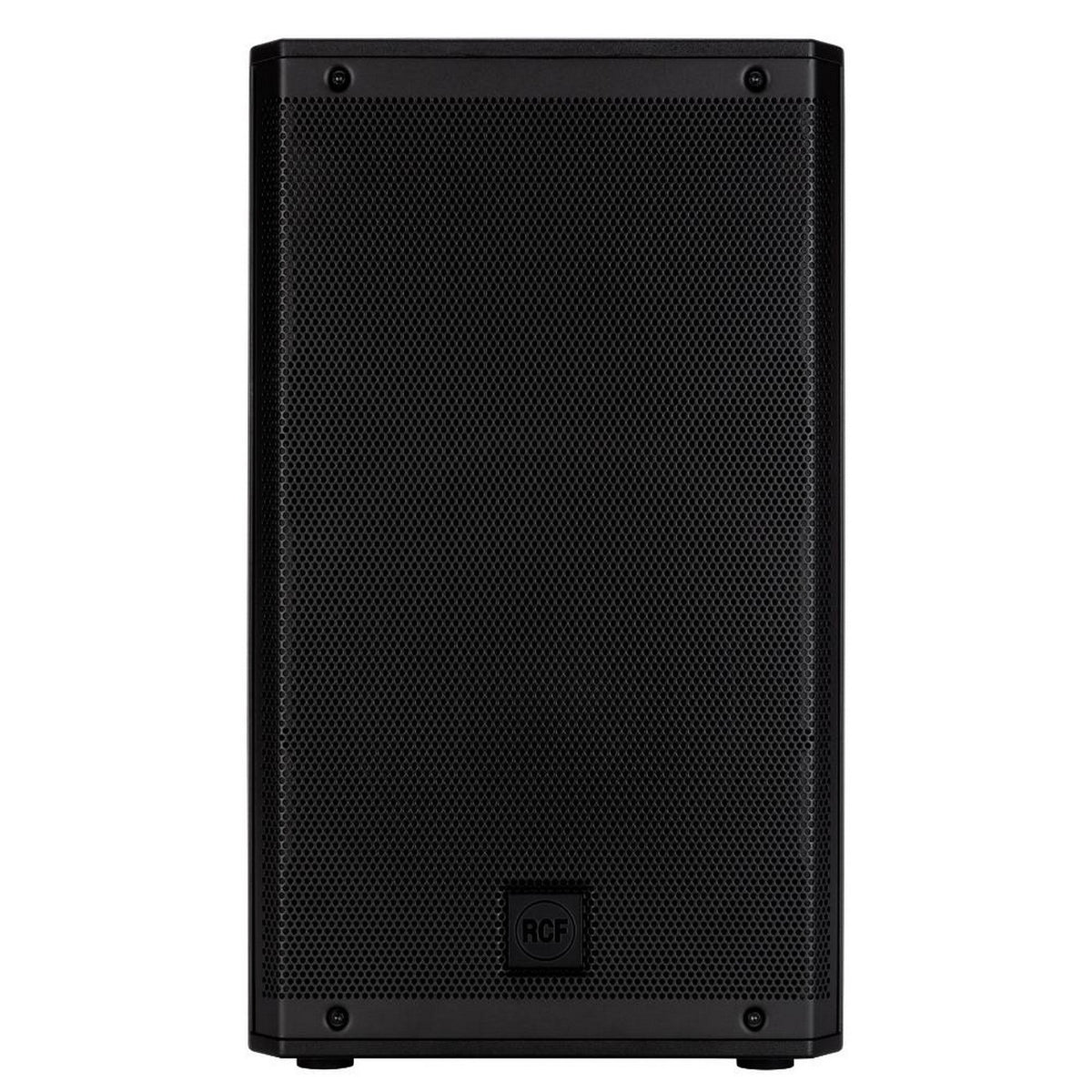

RCF ART 810-A 10-Inch 1400W 2-Way Powered PA Speaker

RCF ART 810-A 10-Inch 1400W 2-Way Powered PA Speaker

The RCF ART 810-A 10-Inch 1400W Active Speaker is a portable two-way powered loudspeaker for DJs, musicians, installers, and live sound users. It combines a 10" woofer, 1.75" compression driver, 1400 W Class D bi-amplification, and 129 dB max SPL in a compact professional speaker.

Built for compact PA systems, mobile DJ rigs, live performance monitoring, and installed sound, the ART 810-A delivers strong output with consistent 100° x 60° coverage. It is a practical choice for buyers looking for a 10-inch powered PA speaker, active live sound speaker, or portable installation loudspeaker with RCF processing.

RCF equips the ART 810-A with True Resistive Waveguide coverage, FiRPHASE processing, BMC processing, and XBOOST low-frequency enhancement. Its polypropylene composite cabinet, steel grille, 35 mm pole mount, and M10 hardware points support fast setup for portable systems or secure installation in professional environments.

Key Features

• 129 dB Max SPL: Delivers high output for compact live sound, DJ, and installation applications.
• 1400 W Class D Bi-Amplification: Provides 1000 W peak low-frequency power and 400 W peak high-frequency power.
• 10" Woofer: Uses a 10" woofer with a 2.5" voice coil for compact low-frequency performance.
• 1.75" Compression Driver: Handles high-frequency reproduction with a 1.0" driver and 1.75" voice coil.
• 100° x 60° Coverage: True Resistive Waveguide design helps maintain consistent horizontal and vertical dispersion.
• XBOOST Low-Frequency Enhancer: Adds selectable bass reinforcement for fuller sound in portable setups.
• FiRPHASE and BMC Processing: Supports phase-coherent output and controlled woofer excursion management.
• Installation-Ready Cabinet: Includes a 35 mm pole mount, steel grille, top handle, and M10 mounting points.

Technical Specifications

• Product Type: Professional active speaker
• Part Number: 13000997
• Model: ART 810-A
• Voltage Version: 100-120 V
• Color: Black
• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 129 dB
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 60°
• Compression Driver: 1 x 1.0", 1.75" voice coil
• Woofer: 1 x 10", 2.5" voice coil
• Input Signal: Balanced / unbalanced
• Input Connectors: XLR, jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu / +4 dBu
• Microphone Input Sensitivity: -32 dBu
• Crossover Frequency: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Volume, Boost, MIC/Line
• Total Power: 1400 W peak
• High-Frequency Power: 400 W peak
• Low-Frequency Power: 1000 W peak
• Cooling: Convection
• Power Connection: VDE
• Safety Agency: CE compliant
• Cabinet Material: PP composite
• Hardware: 2 x M10, top and bottom side
• Handles: 1 on top
• Pole Mount: 35 mm insert
• Grille: Steel
• Dimensions: 12.21" x 12.99" x 22.24"
• Weight: 35.27 lbs

What's Included

• RCF ART 810-A 10-Inch 1400W Active Speaker
