Remote Audio BDSv5H SMART Battery Distribution Box, 8 Hirose Outputs, Dual TA4

Bag rigs built around 4-pin Hirose power get a native fit with the BDSv5H, the Hirose-output version of Remote Audio's BDSv5 SMART battery distribution system. Dual TA4 inputs with a power path controller allow battery hot swapping, input priority and load sharing, so critical gear stays on during a battery change.

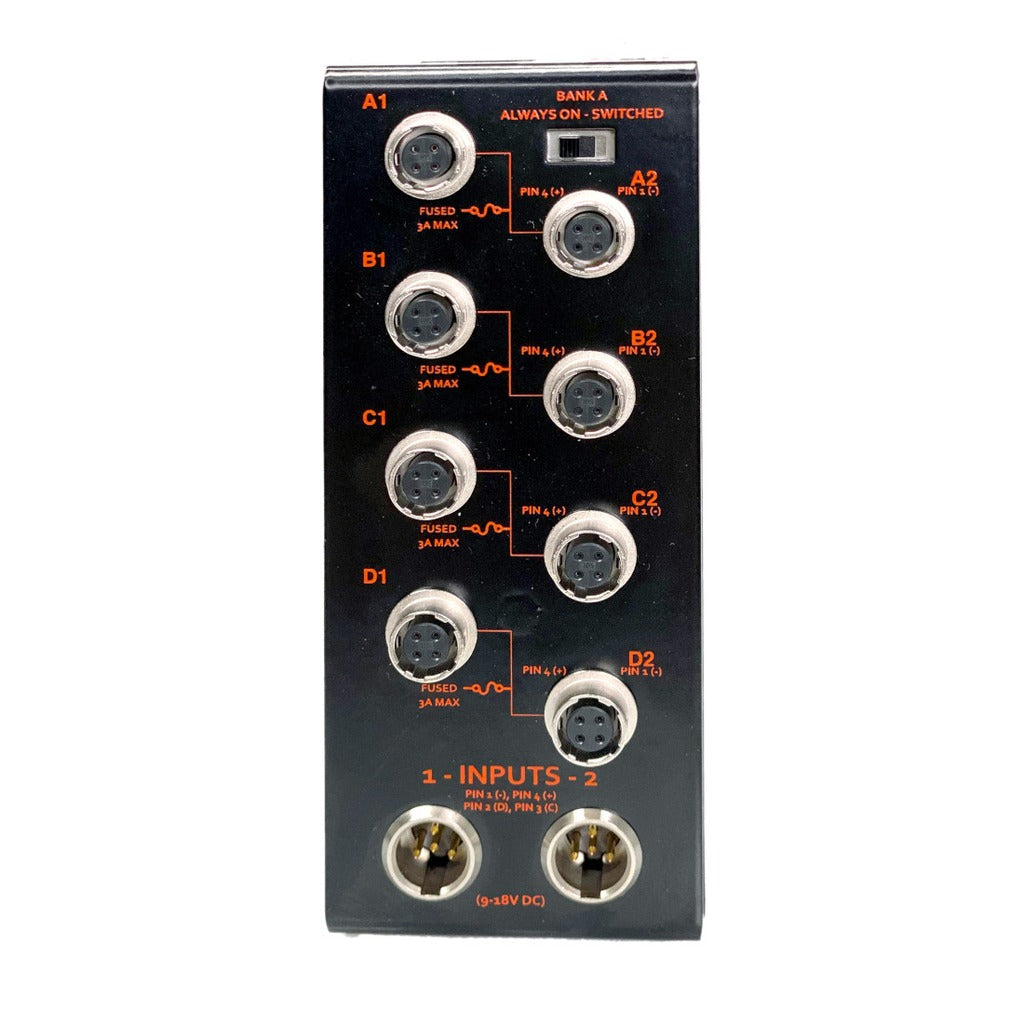

Eight 4-pin Hirose outputs (pin 1 negative, pin 4 positive) are arranged in four banks of two, each fused at 3A combined; Bank A adds a switched/unswitched selector. Total load current reaches up to 12A, with dynamic limits and warnings depending on the connected source.

A 0.95 in color OLED shows battery voltage, state of charge and estimated runtime, plus cycle count, temperature and serial number from smart batteries such as Remote Audio's Hi-Q 49Wh and 98Wh. Settings include screen flip, input priority, a SAFE Switch confirm function, display and USB sleep, and Celsius readout, and a USB-A charging port supports BC1.2 and QC 3.0 at up to 3A.

Features

• Dual TA4 inputs with hot-swap, input priority and load sharing
• SMBus smart battery telemetry on a 0.95 in color OLED display
• (8) 4-pin Hirose outputs in four fused banks
• Up to 12A total load current
• USB-A charging port, BC1.2 and QC 3.0, 3A
• SAFE Switch confirm mode and configurable sleep settings

Technical Specifications

• Inputs: (2) TA4 with smart battery data lines
• Input voltage: 9-18VDC
• Outputs: (8) Hirose 4-pin, pin 1 (-), pins 2 and 3 N.C., pin 4 (+)
• Banks: A, B, C, D, 2 jacks each, 3A combined per bank; Bank A switched/unswitched
• Max total load: 12A
• USB: USB-A, 3A max charging
• Dimensions: 4.5 x 1.8 x 2.1 in (H x W x D, with belt clip)
