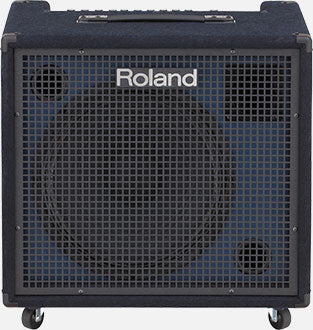

Roland KC-600 200W Stereo Keyboard Amplifier

Roland KC-600 200W Stereo Keyboard Amplifier

The Roland KC-600 is the flagship stereo keyboard amplifier in the KC series, delivering 200 watts of power through a custom 15-inch woofer and horn tweeter. Designed for professional keyboard players performing in medium to large venues, it features a four-channel stereo mixing desk with XLR balanced inputs and outputs, a ground lift switch, and a Stereo Link function that allows chaining a second KC-600 to double the input count for larger stage configurations.

Channels 1 through 4 each accept stereo 1/4-inch L/MONO+R inputs, with Channel 1 additionally featuring a balanced XLR combo for microphone or line sources. The auxiliary input handles RCA phono and 1/8-inch stereo sources. All main outputs are available in both balanced XLR (L/R) and unbalanced 1/4-inch formats at +4 dBu, alongside a dedicated Sub Out for routing bass frequencies to a powered subwoofer. A three-band master EQ (LOW/MID/HIGH) and a Shape button provide tonal flexibility, while a Ground Lift switch eliminates hum from grounding issues on stage.

Four removable casters are included for easy positioning of this 29 kg unit on stage. Channel 4 features an Output Select function for routing a click or guide track to a separate monitor path without sending it to the main mix — an essential tool for modern keyboard performers using playback systems.

Key Features

• 200-watt power output; custom 15-inch (38 cm) woofer + horn tweeter
• 4-channel stereo mixer: balanced XLR + 1/4-inch on CH1; 1/4-inch L/MONO/R on CH2–CH4
• Balanced XLR line outputs (L/R) + unbalanced 1/4-inch line outputs + Sub Out + Stereo Link I/O
• Three-band master EQ (LOW/MID/HIGH) + Shape button + Ground Lift switch
• Stereo Link function for chaining two KC-600 units; Stereo Link IN/OUT jacks (1/4-inch)
• CH4 Output Select for click/guide track monitor routing
• Headphone output (stereo 1/4-inch TRS, mono signal output)
• Includes 4 removable casters; metal jacks throughout

Technical Specifications

• Rated Power Output: 200 W
• Power Consumption: 50 W (idle/rated; efficient Class-D topology implied)
• Speaker System: 38 cm (15-inch) Woofer ×1, Horn Tweeter ×1
• CH1 Input (Balanced XLR + 1/4-inch L/MONO/R, Mic/Line): Nominal Level –50 to –20 dBu
• CH2 Input (1/4-inch L/MONO/R): Nominal Level –20 dBu
• CH3 Input (1/4-inch L/MONO/R): Nominal Level –20 dBu
• CH4 Monitor Input (1/4-inch L/MONO/R): Nominal Level –20 dBu
• Auxiliary Input (RCA Phono L/R + 1/8-inch Stereo): Nominal Level –10 dBu
• Stereo Link IN: 1/4-inch phone jack, 0 dBu nominal
• LINE OUT (Unbalanced) L/MONO, R: 1/4-inch phone, +4 dBu
• LINE OUT (Balanced) L, R: XLR, +4 dBu
• SUB OUT: 1/4-inch phone jack, +4 dBu
• Stereo Link OUT: 1/4-inch phone jack, 0 dBu nominal
• PHONES: Stereo 1/4-inch TRS phone jack (mono signal output)
• Controls: Power Switch, Ground Lift Switch, Shape Button, CH1–CH4 Level Knobs, LOW/MID/HIGH EQ Knobs, Master Volume Knob, Output Select
• Width: 590 mm (23-1/4 inches)
• Depth: 445 mm (17-9/16 inches)
• Height (with casters): 590 mm (23-1/4 inches)
• Height (without casters): 536 mm (21-1/8 inches)
• Weight: 29 kg (63 lbs 15 oz)
• What's In The Box: Owner's Manual, 4 Removable Casters
• Optional Accessory: ST-A95 Speaker Stand
