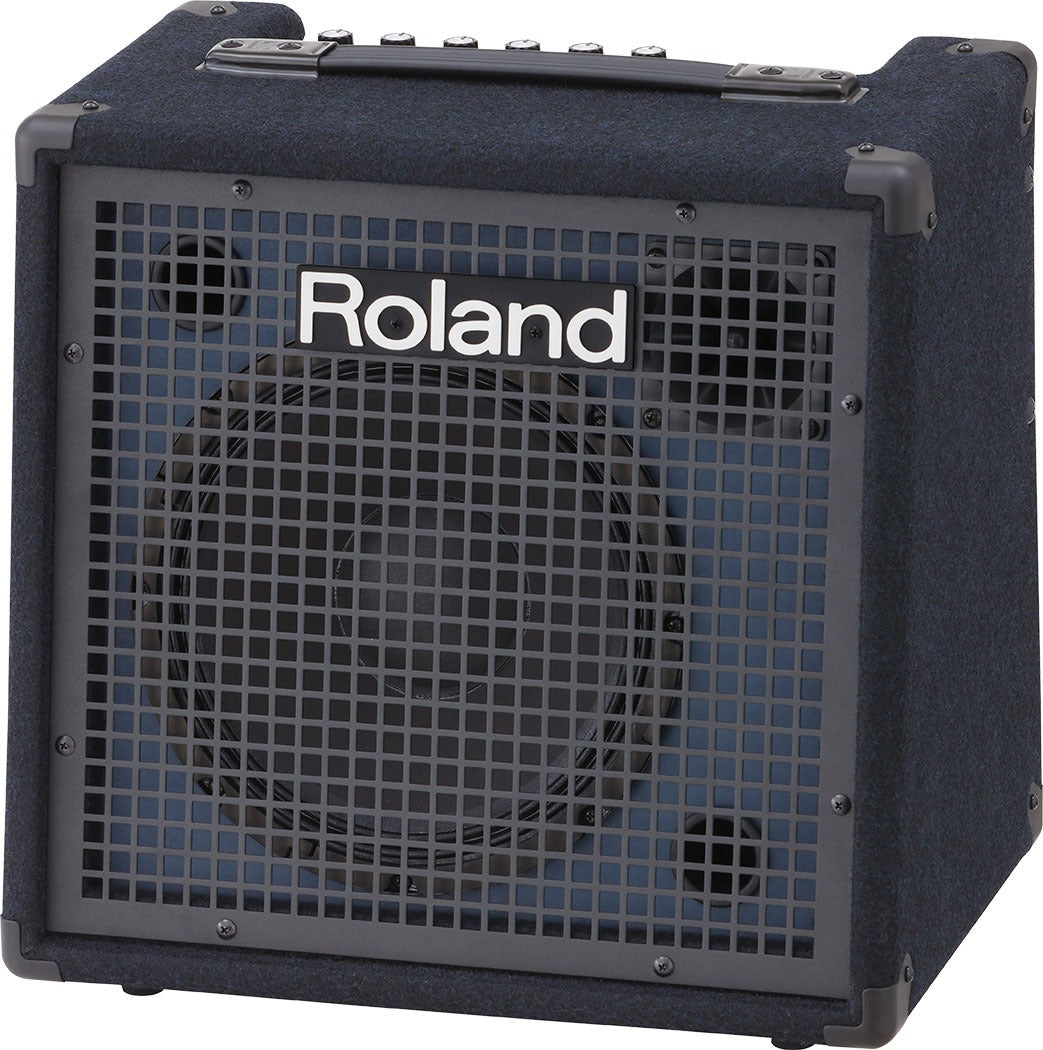

Roland KC-80 50W 3-Channel Keyboard Amplifier

Roland KC-80 50W 3-Channel Keyboard Amplifier

The Roland KC-80 is a 50-watt portable keyboard amplifier that combines professional-grade sound with true portability. Its custom two-way speaker system — a 10-inch (25 cm) woofer paired with a dedicated tweeter in a twin bass-reflex cabinet — delivers full-range audio reproduction that accurately conveys the tonal character of stage pianos, synthesizers, and organs in rehearsal rooms, small stages, and recording environments.

Three input channels provide flexible connectivity: Channel 1 accepts both a balanced XLR signal (switchable mic/line from –50 to –20 dBu) and a 1/4-inch phone input, while Channels 2 and 3 offer additional 1/4-inch line inputs — all with individual level controls. A dedicated auxiliary input (RCA phono + 1/8-inch stereo) handles backing tracks and secondary audio sources. Two-band EQ (LOW and HIGH knobs) and master volume complete the control surface.

The KC-80 provides a 1/4-inch LINE OUT (+4 dBu), a 1/4-inch SUB OUT (+4 dBu) for connecting a powered subwoofer, and a TRS headphone jack (1/4-inch, mono signal) for private monitoring. Metal jacks throughout provide reliable, road-ready durability. The optional ST-A95 speaker stand raises the KC-80 to ear level for better sound dispersion on stage.

Key Features

• 50-watt output; 10-inch (25 cm) woofer + tweeter in twin bass-reflex cabinet
• 3-channel mixer: XLR mic/line + 1/4-inch (CH1); two additional 1/4-inch line inputs (CH2/CH3)
• Auxiliary input: RCA phono (L/R) + 1/8-inch stereo jack (–10 dBu)
• 1/4-inch LINE OUT and SUB OUT both at +4 dBu nominal
• 1/4-inch TRS headphone output (mono signal) for silent monitoring
• Two-band EQ (LOW/HIGH) + master volume control
• Metal jacks for increased durability
• Optional ST-A95 speaker stand compatible

Technical Specifications

• Rated Power Output: 50 W
• Power Consumption: 50 W
• Speaker System: 25 cm (10-inch) Woofer ×1, Tweeter ×1; Twin Bass-Reflex Cabinet
• CH1 Input (XLR + 1/4-inch phone, Mic/Line): Nominal Level –50 to –20 dBu
• CH2 Input (1/4-inch phone, Line): Nominal Level –20 dBu
• CH3 Input (1/4-inch phone, Line): Nominal Level –20 dBu
• Auxiliary Input (RCA Phono L/R + 1/8-inch Stereo): Nominal Level –10 dBu
• LINE OUT: 1/4-inch phone jack, Nominal Level +4 dBu
• SUB OUT: 1/4-inch phone jack, Nominal Level +4 dBu
• PHONES: 1/4-inch TRS phone jack (mono signal output)
• Controls: Power Switch, CH1 MIC/LINE Knob, CH2 LINE Knob, CH3 LINE Knob, MASTER Knob, LOW EQ Knob, HIGH EQ Knob, Power Indicator
• Width: 420 mm (16-9/16 inches)
• Depth: 300 mm (11-13/16 inches)
• Height: 410 mm (16-3/16 inches)
• Weight: 12.5 kg (27 lbs 9 oz)
• What's In The Box: Owner's Manual
• Optional Accessory: ST-A95 Speaker Stand
