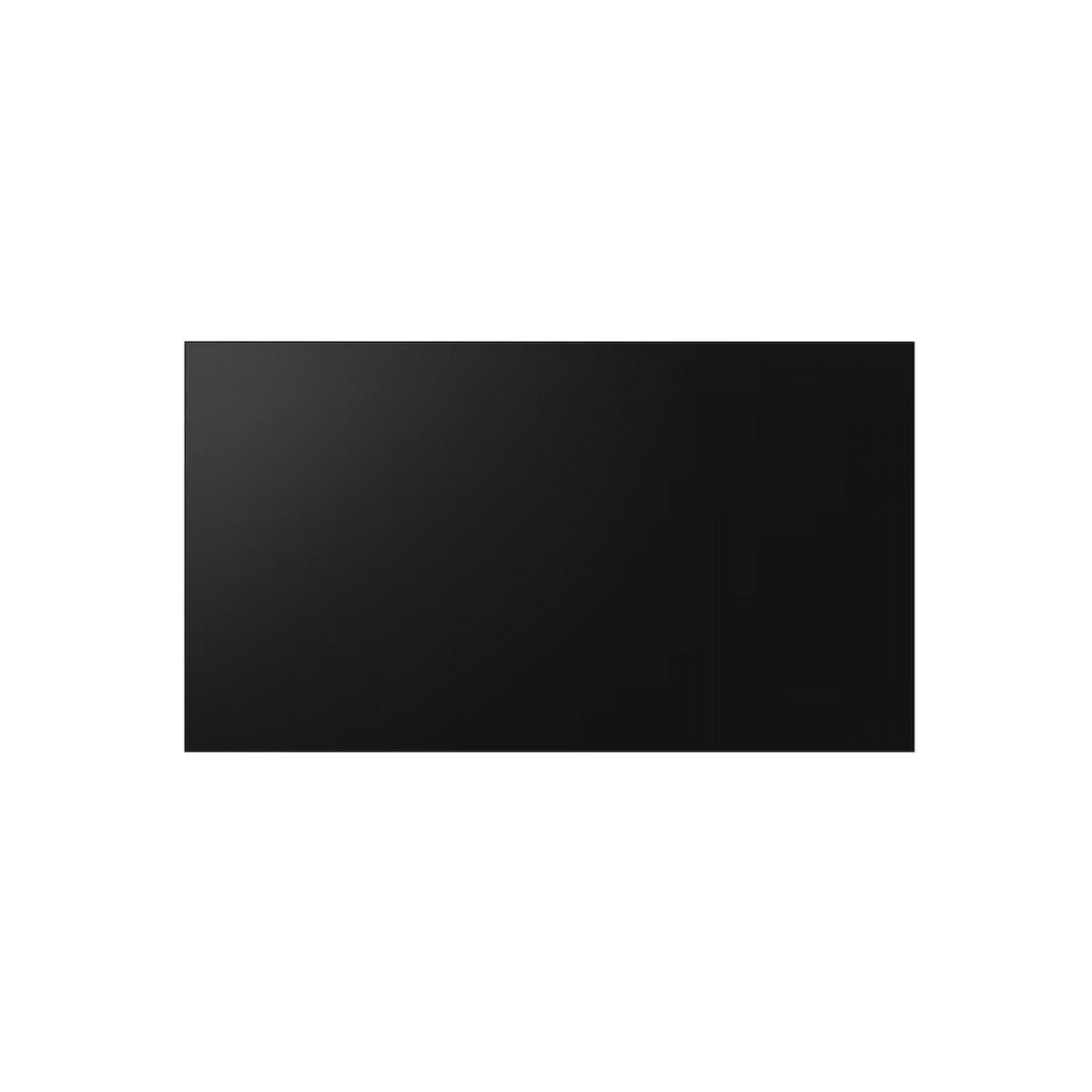

Sony ZRD-C12A High Contrast Crystal LED Video Wall Modular Display Cabinet

Sony ZRD-C12A High Contrast Crystal LED Video Wall Modular Display Cabinet

The Sony ZRD-C12A High Contrast Crystal LED Video Wall Modular Display Cabinet is designed to provide exceptional visual performance for a variety of applications, from immersive digital signage to high-impact corporate displays. With cutting-edge LED technology, this display offers outstanding image quality, deep contrast, and vibrant colors, making it a perfect choice for environments that demand sharp, lifelike visuals. Its 1.26 mm pixel pitch ensures a crisp and detailed picture even when viewed up close, ideal for environments where image clarity is crucial.

The deep black coating enhances the display’s contrast ratio, which exceeds 1,000,000:1, delivering true blacks and bright whites for a more dynamic image. Coupled with a wide viewing angle of 160° horizontally and vertically, the Sony ZRD-C12A ensures that every corner of the room benefits from the same high-quality viewing experience. Its 120Hz refresh rate offers smooth and fluid visuals, making it perfect for fast-moving content such as sports, live events, or interactive displays.

Designed for indoor use, this modular display cabinet is energy efficient with a low average power consumption of 64W, ensuring a minimal impact on operational costs. Additionally, it covers approximately 97% of the DCI-P3 color gamut, ensuring precise color reproduction for professional applications in film production, content creation, and broadcast. With its versatility and reliability, the Sony ZRD-C12A is an ideal solution for creating large, seamless video walls that deliver an unforgettable viewing experience.

Key Features

• 1.26mm Pixel Pitch for high-resolution images
• Deep black coating for enhanced contrast and image clarity
• Up to 120Hz refresh rate for smooth, fluid visuals
• Wide viewing angles of 160° horizontally and vertically
• Advanced color reproduction with 97% DCI-P3 coverage
• High contrast ratio of more than 1,000,000:1 for true-to-life visuals
• Energy-efficient with power consumption options that range from 64W (average) to 157W (maximum)
• Indoor application with optimal temperature and humidity tolerance

Technical Specifications

Pixel Pitch: 1.26 mm

Surface: Deep black coating

Resolution (W x H): 480 x 270

Brightness (max.): 800 cd/m²

Contrast Ratio (0 lx): More than 1,000,000:1

Viewing Angle (H/V): 160°/160°

Color Gamut: Approx. 83% (BT2020, Δu'v' coverage), Approx. 97% (DCI-P3, Δu'v' coverage) (DCI acceptable), Approx. 143% (sRGB, Δu'v' area)

Bit Depth: 22-bit Internal Processing

Frame Rate: Up to 120 frames per second

Signal Interface: 1 in 1 out (2 x RJ45)

Operating Temperature / Operating Humidity: 32°F to 104°F / 20% to 80% (no condensation)

Storage Temperature / Storage Humidity: –4°F to 140°F / 20% to 80% (no condensation)

Power Requirements: AC 100–240 V, 50/60 Hz

Power consumption (max.): 157 W (Per-sqm: 755 W)

Power consumption (ave.): 64 W (Per-sqm: 308 W)

Dimensions (W x H x D): 23.94 in x 13.46 in x 2.99 in

Mass: Approx. 20 lb 15.10 oz (Per-sqm: Approx. 45.7 kg)

Application: Indoor

What's Included

• Sony ZRD-C12A High Contrast Crystal LED Video Wall Modular Display Cabinet
• Installation manual
