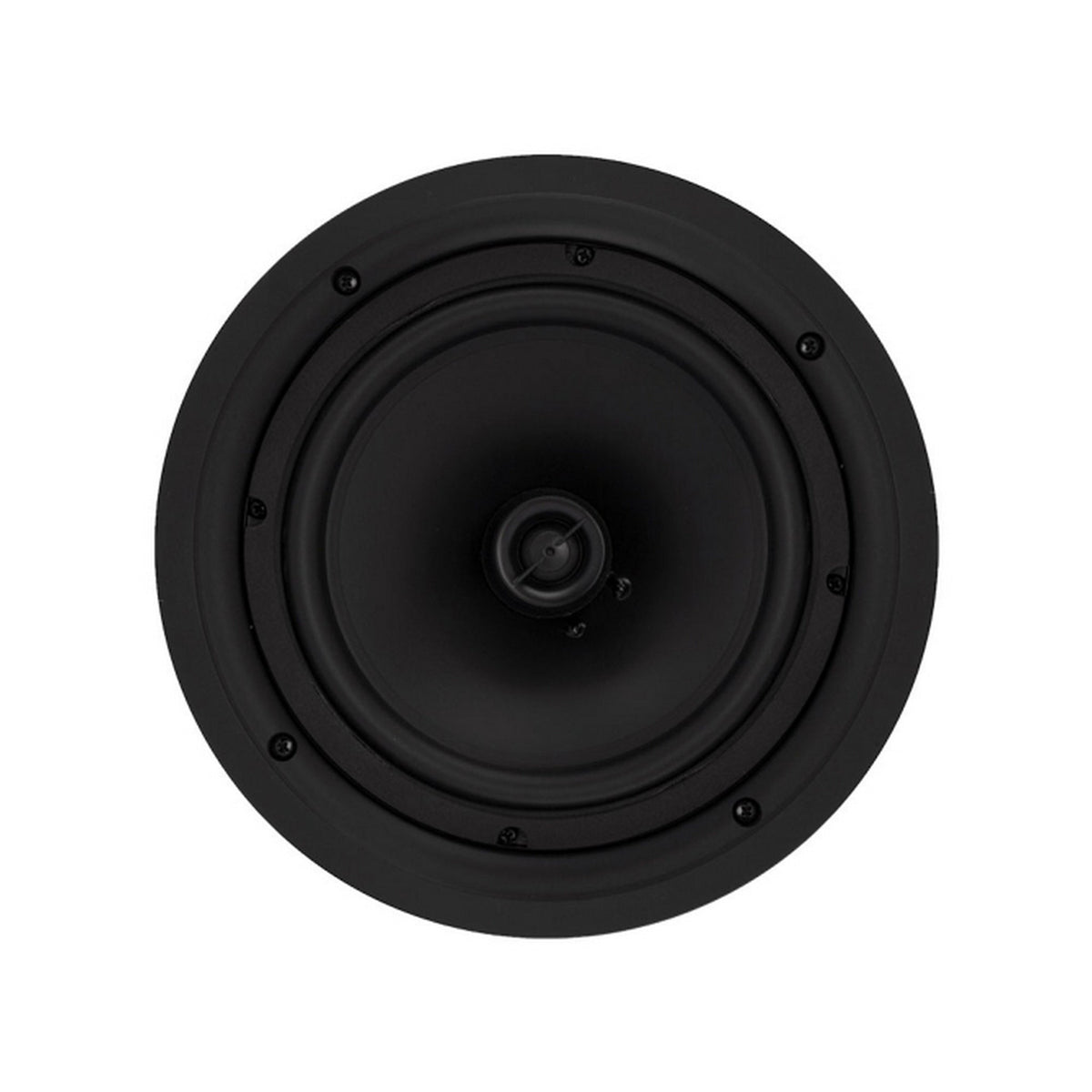

SoundTube CS-8R 8-Inch 2-way In-Ceiling Speaker, Single Unit or Master Pack
SoundTube CS-8R 8-Inch 2-way In-Ceiling Speaker, Single Unit or Master Pack The PhaseTech CS-8R is a professional-grade 8" coaxial in-ceiling speaker engineered for outstanding reproduction of movies, music, and multi-channel audio systems. Its unobtrusive, paintable magnetic micro-flange grille and low-profile bezel blend...
PRODUCT DETAILS
Everything you need to know.
SoundTube CS-8R 8-Inch 2-way In-Ceiling Speaker, Single Unit or Master Pack
The PhaseTech CS-8R is a professional-grade 8" coaxial in-ceiling speaker engineered for outstanding reproduction of movies, music, and multi-channel audio systems. Its unobtrusive, paintable magnetic micro-flange grille and low-profile bezel blend seamlessly into any ceiling, while the pivoting .75" soft dome tweeter ensures precise off-axis coverage.
Constructed with an 8" polypropylene cone woofer featuring a butyl rubber surround, the CS-8R delivers robust mid-bass performance down to 42 Hz. The infinite baffle enclosure design and 8 Ω nominal impedance allow flexible installation paired with a variety of amplifiers (5–120 W). Available as a single unit or as a CS-8R Master Pack of 12 units for large-scale deployments.
Key Features
- Coaxial 2-Way Design: 8" woofer + .75" variable axis soft dome tweeter for full-range coverage
- Adjustable Tweeter: Pivoting design for optimized off-axis listening
- Infinite Baffle Enclosure: Seamless integration with ceiling plenum
- Paintable Grille: Micro-flange, magnetic, powder-coated steel; paintable to match decor
- Wide Frequency Response: 42 Hz – 20 kHz (±3 dB)
- Sensitivity: 87 dB @ 2.83 V/1 m
- Impedance: 8 Ω nominal
- Power Handling: 5 – 120 W RMS
- Included Accessories (single unit): Grille, Hole Template
- Optional Accessory: Pre-Construction Bracket (RB22)
Technical Specifications
- Dimensions: 10.6" Ø × 3.8" D (26.92 cm Ø × 9.65 cm D)
- Cutout Size: 9.63" Ø × 3.38" D (24.46 cm Ø × 8.59 cm D)
- Weight: 5.5 lbs (2.49 kg)
- Master Pack Weight: 71.3 lbs (32.34 kg) for 12 units
- Frequency Response: 42 Hz – 20 kHz (±3 dB)
- Nominal Impedance: 8 Ω
- Sensitivity: 87 dB @ 2.83 V/1 m
- Recommended Amplifier Power: 5 – 120 W
- Grille Properties: Flangeless, Magnetic, Powder-Coated, Paintable
- Enclosure: Infinite Baffle
- Driver Complement: 8" Coaxial Polypropylene woofer w/ NBR surround; .75" soft dome tweeter
- Source Inputs: Metal Push Binding Posts
- Color: White
- UPC (single): 748252171566
- UPC (12-pack): 748252171665
What's Included
- Grille (paintable, magnetic micro-flange)
- Hole Template
What's Included
- CS-8R: Single Unit
- CS-8RMP: 12 Units
