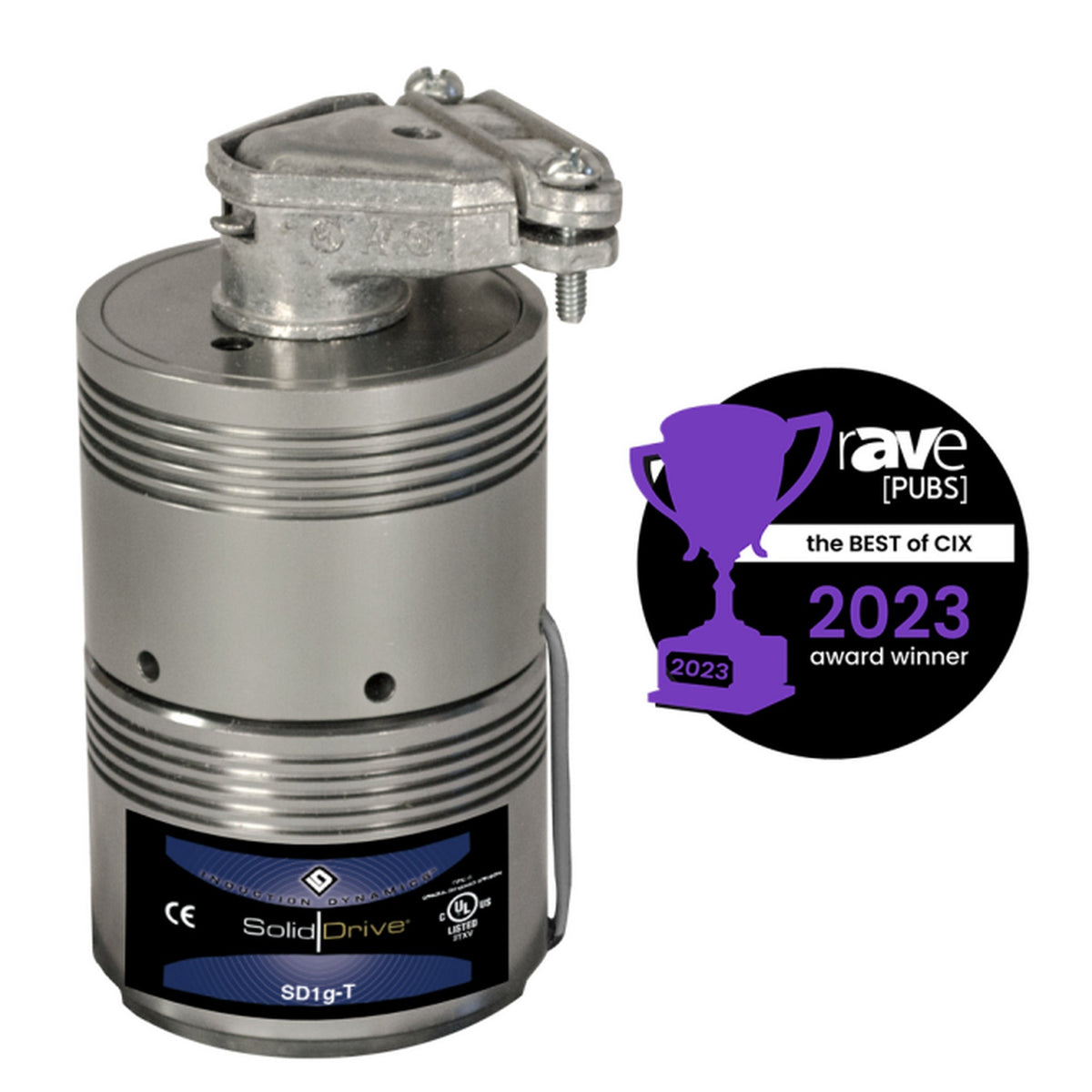

SoundTube SD-1G-T Titanium Glass Surface-Mount Actuator with Transformer
SoundTube SD-1G-T Titanium Glass Surface-Mount Actuator with Transformer The SD-1G-T combines SolidDrive’s patent-pending dual-voice coil transducer technology with an integrated 10 W transformer, optimized for mounting on glass and other non-porous surfaces via the included VHB Adhesive Disc. Its anodized aluminum enclosure...
PRODUCT DETAILS
Everything you need to know.
SoundTube SD-1G-T Titanium Glass Surface-Mount Actuator with Transformer
The SD-1G-T combines SolidDrive’s patent-pending dual-voice coil transducer technology with an integrated 10 W transformer, optimized for mounting on glass and other non-porous surfaces via the included VHB Adhesive Disc. Its anodized aluminum enclosure in titanium finish ensures both durability and a sleek appearance.
Powered by high-strength neodymium magnets and symmetrically opposed motors, it efficiently converts audio signals into full-range vibrations, delivering uniform planar-source acoustics across large surfaces with a frequency response of 70 Hz to 15 kHz.
Key Features
- Transducer Technology: Dual-voice coil planar driver with patent-pending design
- Transformer: Built-in 10 W transformer for use with constant-voltage systems
- Mounting: VHB Adhesive Disc (included) for glass and non-porous substrates
- Enclosure: Anodized aluminum with titanium finish
- Inputs: Wire leads for direct connection
- Certifications: UL1480, UL2043
Technical Specifications
- Depth (Length): 2.28 in (57.9 mm)
- Width/Diameter: 2.00 in (50.8 mm)
- Height: 4.80 in (121.92 mm)
- Frequency Response (±10 dB): 70 Hz – 15 kHz
- Nominal Impedance: 8 Ω
- Transformer Power: 10 W constant-voltage
- Enclosure Material: Anodized aluminum
- Finish: Titanium
What’s Included
- VHB Adhesive Disc for glass mounting
