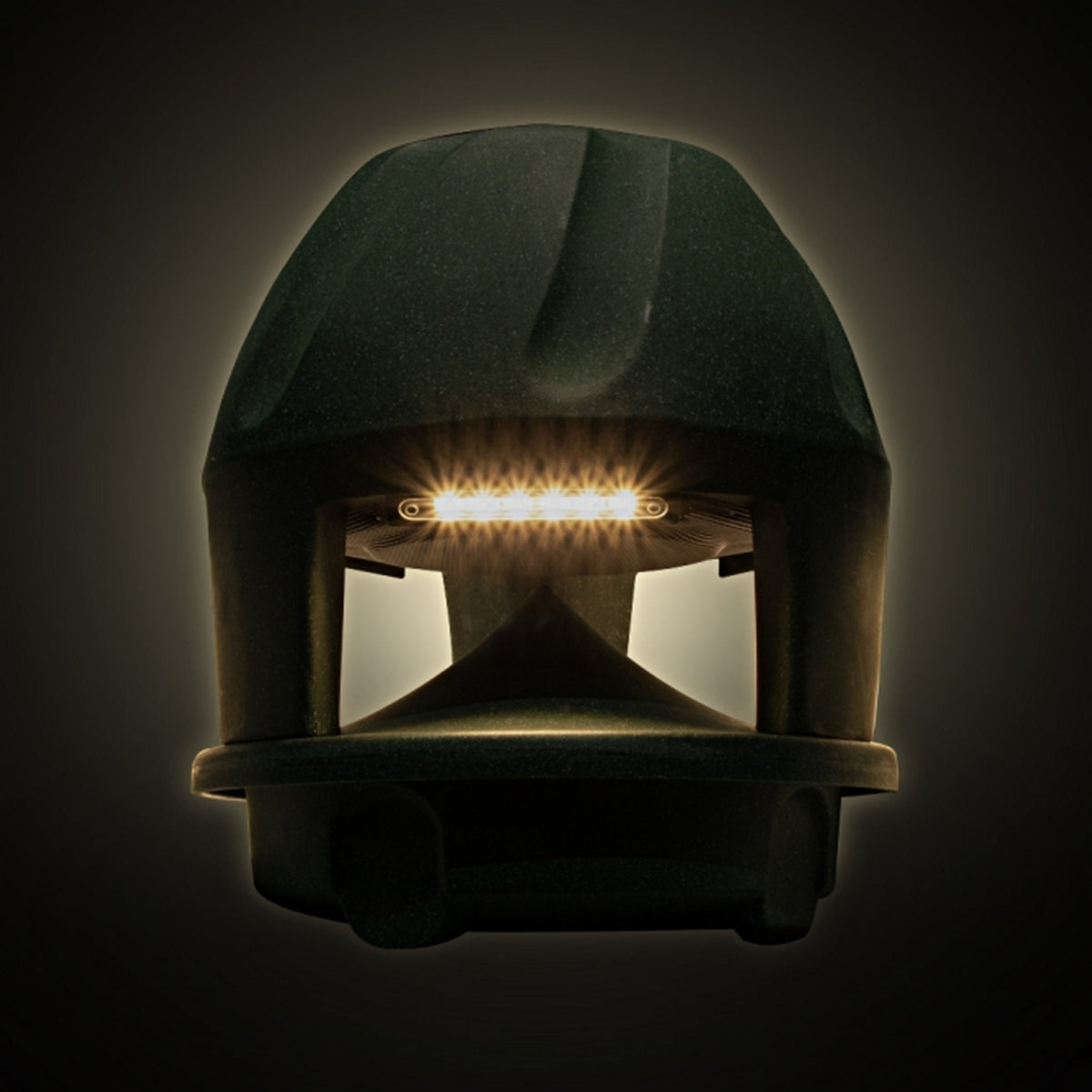

SoundTube XT850 Outdoor Speaker System

SoundTube XT850 Outdoor Speaker System

The SoundTube XT850 series delivers premium 2-way outdoor audio in a sealed, in‑ground enclosure engineered for extreme environments. Featuring UV-, scratch-, chlorine-, and weather-resistant housings—and professional-grade components—these speakers provide full‑range music or paging, or, in the LED model, integrated pathway lighting for landscape applications.

Each variant includes theft‑resistant mounting hardware and a weatherproof tap switch for 25/70.7/100 V applications with a transformer bypass. The standard, LED, and SS models reproduce down to 38 Hz, while the SUB variant extends bass to 30 Hz with a low‑pass filter. An IP55 rating protects against dust and low‑pressure water jets.

Key Features

• Enclosure: UV, scratch, chlorine, and weather resistant sealed in‑ground design
• Drivers (Std/LED/SS): 8″ polypropylene woofer; 1″ aluminum‑dome tweeter
• Driver (SUB): 8″ polypropylene woofer with butyl rubber surround
• Crossover: Std/LED/SS: 3.0 kHz; SUB: low‑pass 150 Hz
• Power Handling: Std/LED/SS: 100 W RMS (200 W program); SUB: 80 W RMS (160 W program)
• Impedance: Std/LED/SS: 4 Ω nominal; SUB: 8 Ω nominal
• Transformer Options: 25 V, 70.7 V, 100 V with direct bypass
• Tap Switch: Std/LED/SS: 5‑position; SUB: 2‑position
• Sensitivity: Std/LED/SS: 85 dB @ 1 W/1 m (88 dB @ 2.83 V/1 m); SUB: 86 dB @ 1 W/1 m
• Frequency Response: Std/LED/SS: ±10 dB: 38 Hz–22 kHz; SUB: ±10 dB: 30 Hz–150 Hz
• IP Rating: IP55
• (LED Model Only): Integrated warm‑white 3000 K LED strips; compatible with 12 V landscape transformers and dimmers

Technical Specifications

• Height: 16.42 in (417.1 mm)
• Diameter: 14.17 in (359.9 mm)
• Shipping Weight: Std/LED/SS: 21.60 lbs (9.8 kg); SUB: 22 lbs (10 kg)
• Carton Dimensions: 19 in H × 16.25 in L × 16.25 in W
• Color Variations: Green or Sandstone

What's Included

• Anti‑Theft Bracket
• Weatherproof Strain Relief
• Wire Nuts

Variation Differences
