Turtle AV Video Wall Matrix and Multiviewer

The Turtle AV Video Wall Series offers a flexible, professional-grade solution for multi-screen video wall, matrix switching, and multiview configurations. With two size options — 4x4 and 8x8 — these units deliver high-resolution 4K60 HDMI video with full 4:4:4 chroma, making them ideal for corporate installations, control rooms, broadcast studios, signage networks, and large-scale AV deployments.

Both the 4x4 and 8x8 Video Wall units support seamless switching, individual source scaling, embedded/de-embedded audio, and advanced EDID and HDCP management. They can operate as video walls, full HDMI matrices, or multiview processors, giving you maximum flexibility with a single device. Built-in Web GUI, front-panel controls, RS-232, and API support make system integration and automation straightforward.

Whether you choose the compact 4x4 model for smaller installations or the high-capacity 8x8 for large video wall arrays, Turtle AV delivers a reliable, scalable, and feature-rich platform for multi-display video systems.

Variants

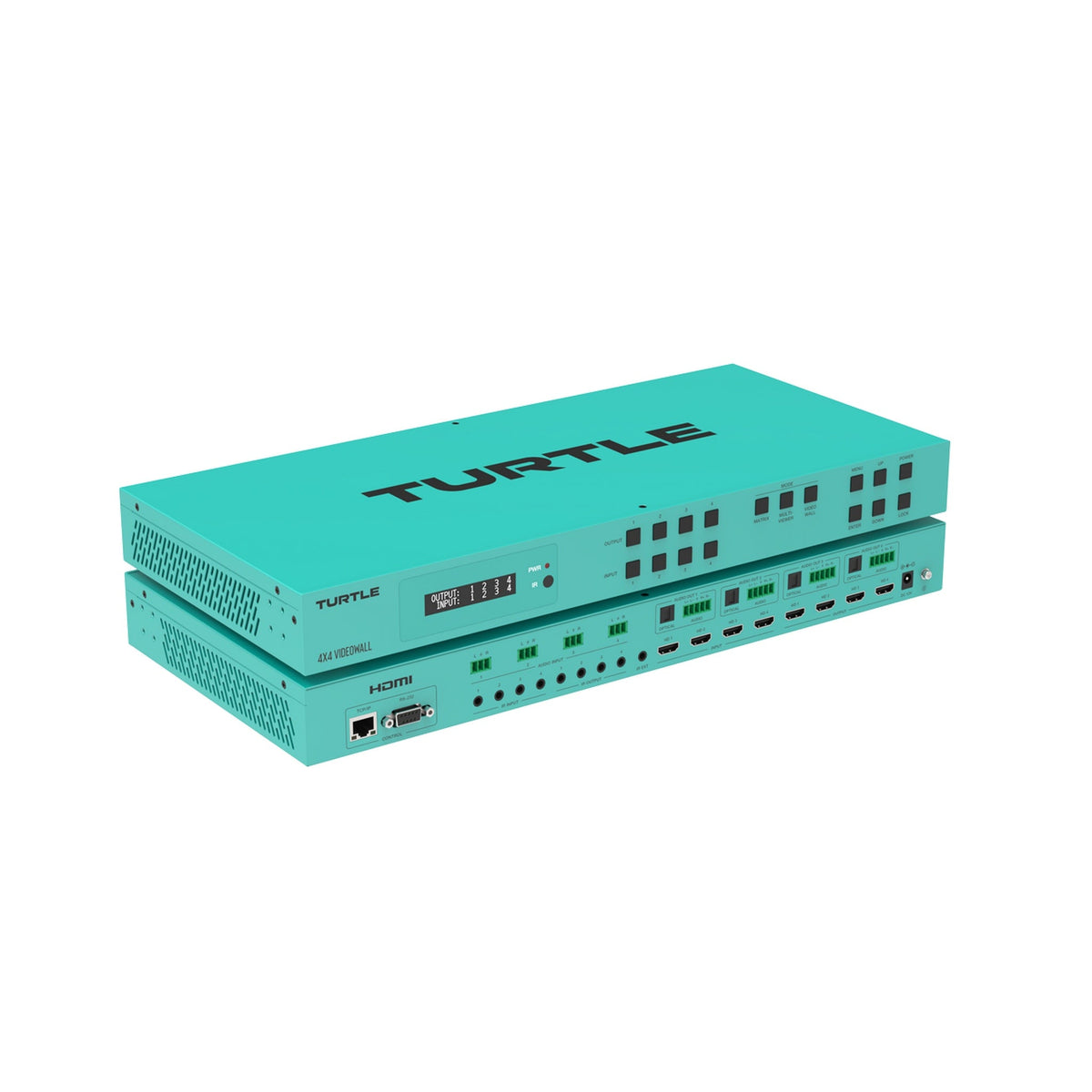

• Video Wall 4x4: 4 HDMI inputs, 4 HDMI outputs — supports 4K60 4:4:4 video, Matrix, Video Wall, and Multiview modes.
• Video Wall 8x8: 8 HDMI inputs, 8 HDMI outputs — supports 4K60 4:4:4 video, full 8x8 Matrix, Video Wall, and dual-output Multiview modes.

Key Features (Both Variants)

• 4K60 4:4:4 HDMI 2.0 Video: Full HD/UHD video output with rich color fidelity and bandwidth up to 18 Gbps per link.
• Flexible Modes: Operates as Video Wall, Full Matrix Switch, or Multiview Processor depending on configuration needs.
• Seamless Switching & Scaling: Smooth transitions between sources without frame loss, plus per-output scaling and layout control.
• Audio Embedding / De-Embedding: Support for HDMI embedded audio as well as analog / optical audio I/O for downstream audio devices.
• Advanced EDID and HDCP Management: EDID control and HDCP 2.2 compliance ensure compatibility with protected content and a range of displays.
• Multiple Control Interfaces: Front-panel buttons, Web GUI, RS-232, and API support for integration into automation and control systems.
• Metal Chassis: Durable, rack-mountable enclosure suitable for professional AV racks or equipment rooms.

Technical Specifications (Common Traits)

• HDMI Standard: HDMI 2.0, HDCP 2.2 compatible
• Max Video Resolution: Up to 3840 × 2160 at 60 Hz (4K60), 4:4:4 chroma
• Bandwidth per Link: 18 Gbps
• Color Depth (Input): 8-bit / 10-bit / 12-bit
• Color Space Output: RGB 4:4:4 or YCbCr 4:4:4 / 4:2:2 / 4:2:0
• Audio Support: HDMI embedded audio (LPCM, Dolby, DTS, etc.), plus analog or optical audio I/O where available
• Control Interfaces: LAN (PoE capable), RS-232 (Phoenix connector), IR (3.5 mm), Web GUI, API
• Power Supply: AC 100-240V to DC adapter (as per model)
• Form Factor: Standard rack-mount metal enclosure
