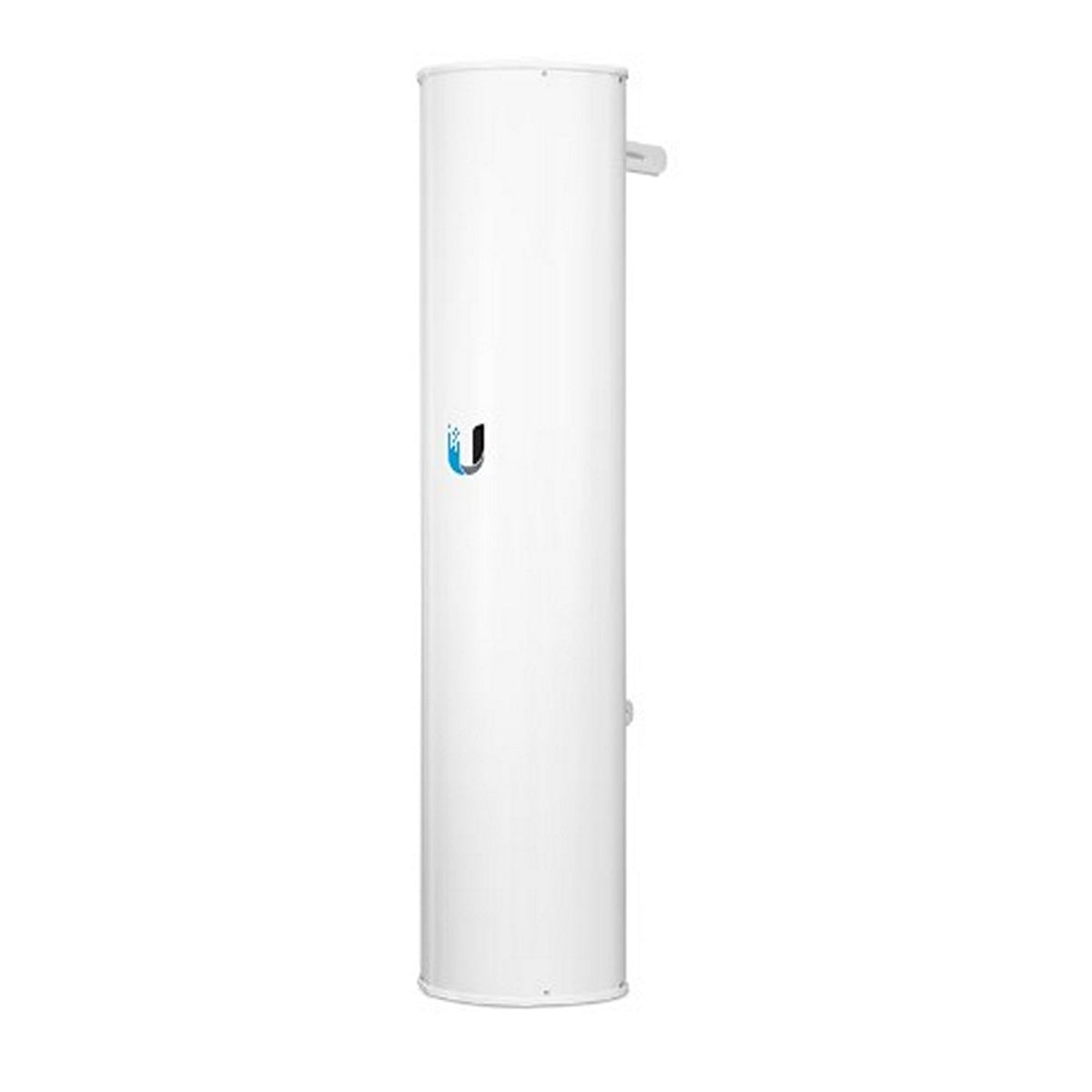

Ubiquiti AirPRISM 3x30 HD Sector Antenna

Ubiquiti airPRISM 3x30° HD Sector Antenna - AP-5AC-90-HD

The Ubiquiti airPRISM 3x30° HD Sector Antenna (AP-5AC-90-HD) delivers exceptional performance for high-density Point-to-MultiPoint (PtMP) applications. Offering a wide 5 GHz frequency range and a 22 dBi gain, this antenna is designed to provide reliable, long-range coverage in challenging environments. It is ideal for reducing tower costs while maintaining optimal connectivity and throughput, especially when paired with the Rocket Prism 5AC. The airPRISM antenna’s advanced beamforming technology ensures excellent coverage and signal clarity.

Designed for use in high-density environments, this antenna is perfect for outdoor deployments. With robust wind survivability and dual-polarization, it delivers powerful performance for both short and long-range communication needs.

Key Features

• 5 GHz frequency with 22 dBi gain
• Perfect for Point-to-MultiPoint (PtMP) applications
• Compatible with Rocket Prism 5AC
• Reduces tower costs with a compact design
• High wind survivability (125 mph)

Technical Specifications

Model Number: AP-5AC-90-HD
Dimensions: With Mount: 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18")
Weight: With Mount: 13.1 kg (28.9 lb)
Frequency Range: 5.15 - 5.85 GHz
Gain: 22 dBi
HPOL Beamwidth: 3 x 30° (6 dB)
VPOL Beamwidth: 3 x 30° (6 dB)
Elevation Beamwidth: 8°
Electrical Downtilt: 2°
Polarization: Dual-Linear
Max. VSWR: 1.75:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 534 N @ 200 km/h (120 lbf @ 125 mph)
Interfaces: (6) RP-SMA Connectors (Weatherproof)
Compatible Radio: Rocket5ac Prism
Mounting: Pole Mount (Kit Included)
ETSI Specification: EN 302 326 DN2
Certifications: CE, FCC, IC
