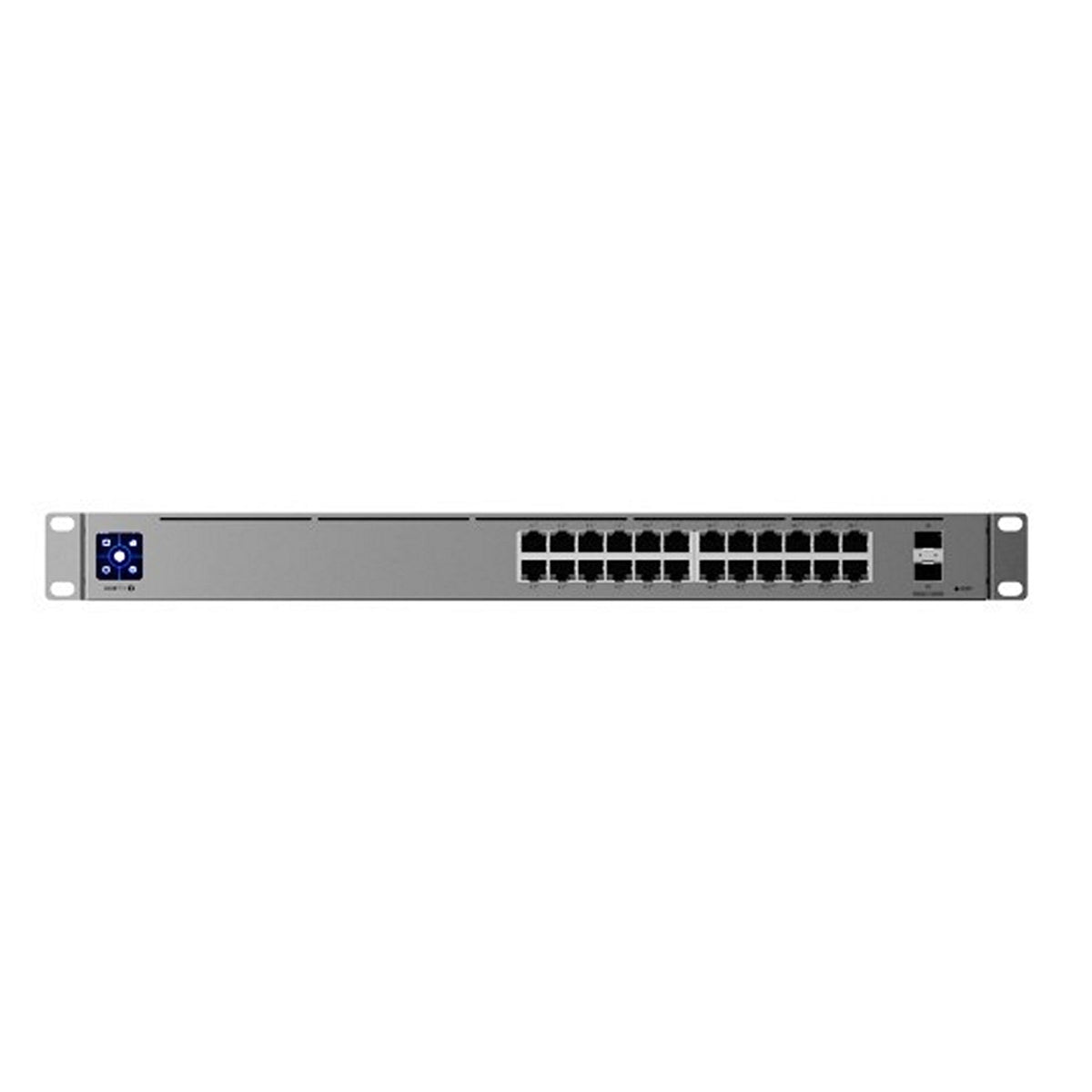

Ubiquiti USW Pro 24 POE 24 Port PoE Switch for Network Expansion
In stock SKU: UBI-USWPRO24POE

RhythmVault

Ubiquiti USW Pro 24 POE 24 Port PoE Switch for Network Expansion

$658.70

Ubiquiti USW-Pro-24-POE 24-Port Layer 3 PoE Switch The Ubiquiti UniFi Switch Pro 24 PoE (USW-Pro-24-POE) is an advanced Layer 3 switch that features 24 Gigabit Ethernet ports, 2 x 1/10G SFP+ ports, and offers exceptional PoE+ and PoE++ capabilities. Ideal for powering...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Ubiquiti USW-Pro-24-POE 24-Port Layer 3 PoE Switch

The Ubiquiti UniFi Switch Pro 24 PoE (USW-Pro-24-POE) is an advanced Layer 3 switch that features 24 Gigabit Ethernet ports, 2 x 1/10G SFP+ ports, and offers exceptional PoE+ and PoE++ capabilities. Ideal for powering devices such as IP cameras and access points, this switch ensures high-performance networking with 400W PoE power available. With a total throughput of 44 Gbps and a forwarding rate of 65.472 Mpps, it is perfect for businesses requiring scalability and efficient network management.

Key Features:

  • 24 GbE PoE+ ports and 8 PoE++ ports
  • 2 x 10G SFP+ uplinks
  • 400W total PoE power output
  • Layer 3 switching with advanced routing capabilities
  • 1.3" touchscreen LCM display for easy management
  • Supports high PoE wattage: 64W per PoE++ port

Technical Specifications:

Dimensions: 17.4" x 11.2" x 1.7" (442 x 285 x 44 mm)
Weight: 9.5 lb (without mounting brackets), 9.7 lb (with mounting brackets)
Enclosure material: SGCC Steel

Hardware
Management interface: Ethernet In-Band
Networking interface: 24 x GbE RJ45 ports, 2 x 10G SFP+ ports
PoE interface: 16 x PoE/PoE+ (Pins 1, 2+; 3, 6-) / 8 x 60W PoE++
Total non-blocking throughput: 44 Gbps
Switching capacity: 88 Gbps
Forwarding rate: 65.472 Mpps
Power method: Universal input, 100—240V AC, 50/60 Hz
Power supply: AC/DC, internal, 450W
Max. power consumption: 50W (Excluding PoE output)
Total available PoE: 400W
Max. PoE wattage per port: PoE+: 32W, PoE++: 64W
PoE voltage range: PoE: 44—57V, PoE+: 50—57V
LCM display: 1.3" touchscreen
Button: Factory reset
Ambient operating temperature: -5 to 40° C (23 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC

Switching Features:

  • Layer 2 features: IGMP snooping, STP/RSTP, Port isolation, and more
  • Layer 3 features: DHCP relay, Static routing, Inter-VLAN routing
  • Advanced security: MAC address blocking, 802.1X control, and more

Application Requirements:

UniFi Network: Version 5.10.5 and later
