Ubiquiti UVC AI Theta AI Camera System Kit, 4K Resolution

Ubiquiti UVC-AI-Theta AI Camera System Kit

The Ubiquiti UVC-AI-Theta AI Camera System Kit provides a high-quality, 360° panoramic surveillance solution with cutting-edge AI features. The system includes two lens options, the wide-angle lens for standard coverage and the 360° lens for a full view. With 4K resolution and intelligent AI processing, it detects people and reads license plates, making it ideal for a wide range of applications. Powered by PoE, it ensures a clean installation without the need for separate power cables. The system supports UniFi Protect for easy management and integration.

Key Features:

• 4K (9MP) resolution with 360° wide-angle lens for full coverage
• AI-driven features such as people detection and license plate reading*
• Minimal footprint with lens separated from the camera body
• PoE-powered hub and optional AI Theta Audio module for two-way audio
• Ideal for both residential and commercial security installations

Technical Specifications

Dimensions:
UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5")

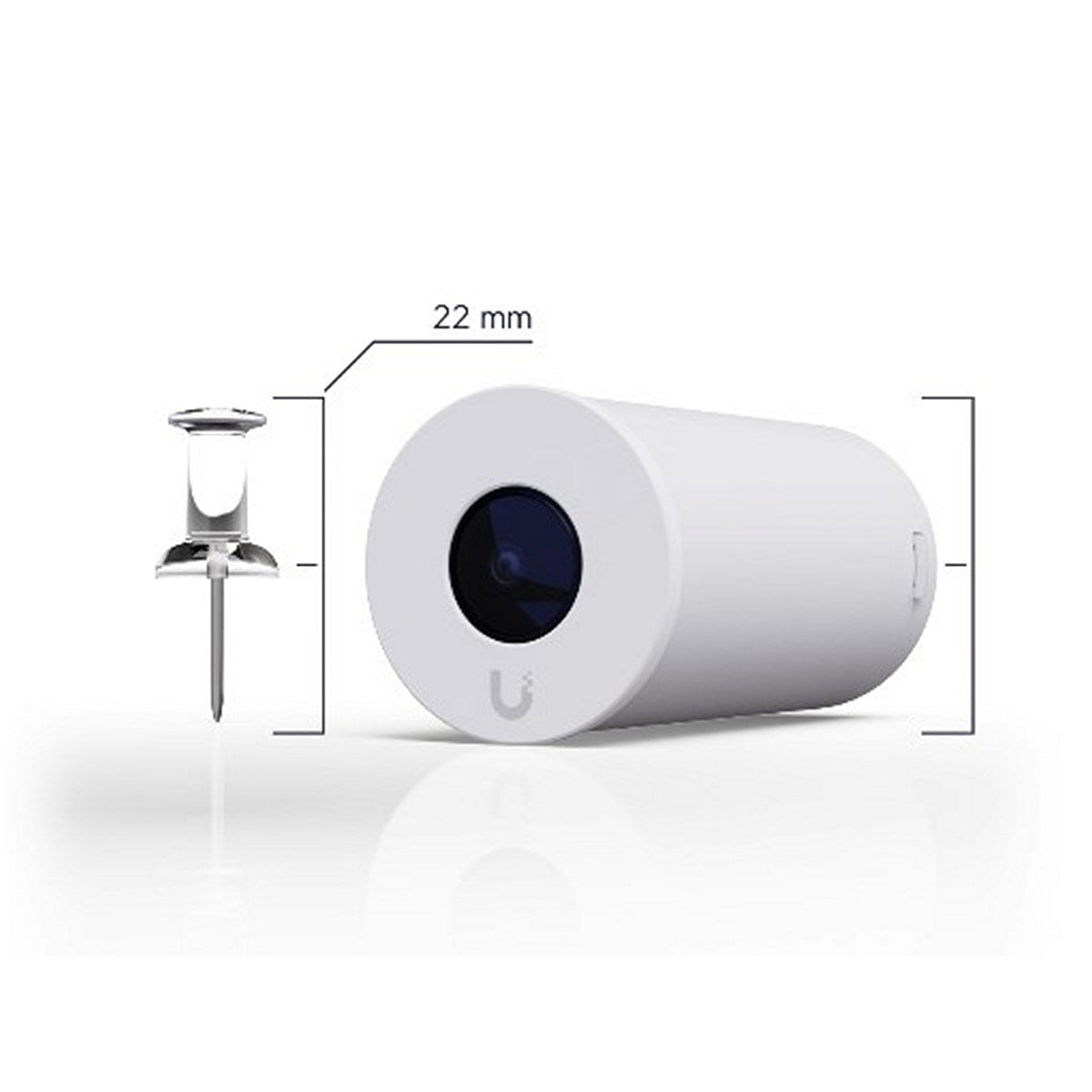

UVC-AI-Theta-Lens/360: Ø22.8 x 43.5 mm (Ø0.9 x 1.7")
Weight:
UVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Lens/360: 15 g (0.5 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)
Enclosure Material:
UVC-AI-Theta-Hub: Aluminum Alloy
UVC-AI-Theta-Lens/360: Aluminum Alloy, Polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: Polycarbonate
Mounting Material:
UVC-AI-Theta-Hub: Aluminum Alloy
UVC-AI-Theta-Lens/360: Aluminum Alloy, Polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: Polycarbonate

Optics:
Sensor: 8MP CMOS (Theta-Lens), 12MP CMOS (Theta-360)
Lens: Fixed Focal Length
View Angle: Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°
Theta-360: H: 180°, V: 180°, D: 180°
Resolution: Theta-Lens: 8MP 3264 x 2448 (4:3), Theta-360: 6MP 2560 x 2560 (1:1)
Max. Frame Rate: Theta-Lens: 24 FPS, Theta-360: 20 FPS

System:
Processor: Quad-core Arm® Cortex®-A53 based chip
Networking Interface: GbE RJ45 Port
Max Power Consumption: 12.5W
Power Method: PoE
Power Supply: 5V DC, 0.5A
Supported Voltage Range: 37—57V DC
Output Power: 5V DC, 1A per Port

Audio:
Supports optional AI Theta Audio module for two-way audio (sold separately)

Software:
Web Application: UniFi Protect: Version 2.7.18 and later
Mobile App: UniFi Protect iOS™ and Android™: Version 1.11.0 and later

Package Contents:

• 1 x AI Theta Hub
• 1 x Wide-Angle Lens
• 1 x 360° Lens
• 2 x Standard Flush Mounts

*License plate recognition available with optional lenses.
